What is an API Call?

An API (Application Programming Interface) is a set of functions provided by the operating system or a library — like CreateFile(), ReadProcessMemory(), or MessageBox().
These functions are called by programs to interact with the system, hardware, or other programs.

What is Hooking?

Hooking means intercepting a function call so that you can run your own code before, after, or instead of the original function.
Think of it as placing a “trap” or “detour” on a function.---

What is API Hooking Specifically?

It’s the act of modifying or intercepting calls to standard system functions (APIs) — such as Windows API functions.
There are many ways to do it:

Modify function pointers (like in IAT, the Import Address Table),
Overwrite function code (e.g., with a jump to your own code),
Use system-level hooks (SetWindowsHookEx), etc.

How Antivirus (AV) Uses It.

Antivirus and EDR (Endpoint Detection and Response) tools hook common Windows APIs to:
Detect suspicious behavior (like injecting code into another process),
Log sensitive calls (like WriteProcessMemory, NtCreateThreadEx),
Block dangerous operations in real time.

So, API hooking is used both offensively (by malware) and defensively (by security software).

Simple dll Code

//pet.dll
#include <windows.h>
#pragma comment (lib, "user32.lib")

BOOL APIENTRY DllMain(HMODULE hModule, DWORD ul_reason_for_call, LPVOID lpReserved) {
	switch (ul_reason_for_call) {
		case DLL_PROCESS_ATTACH:
			break;
		case DLL_PROCESS_DETACH:
			break;
		case DLL_THREAD_ATTACH:
			break;
		case DLL_THREAD_DETACH:
			break;
	}
	return TRUE;
}
extern "C" {
	__declspec(dllexport) int _cdecl Cat(LPCTSTR say) {
		MessageBox(NULL, say, "=^..^=", MB_OK);
		return 1;
	}
}
extern "C" {
	__declspec(dllexport) int _cdecl Mouse(LPCTSTR say) {
		MessageBox(NULL, say, "<:3()~~", MB_OK);
		return 1;
	}
}
extern "C" {
	__declspec(dllexport) int _cdecl Frog(LPCTSTR say) {
		MessageBox(NULL, say, "8)~", MB_OK);
		return 1;
	}
}
extern "C" {
	__declspec(dllexport) int _cdecl Bird(LPCTSTR say) {
		MessageBox(NULL, say, "<(-)", MB_OK);
		return 1;
	}
}

We have created a DLL which exported function: Cat, Mouse, Frog, Brid with one parameter.
And in output it just pop-up a message.

Compile

x86_64-w64-mingw32-gcc -shared -o pet.dll pet.cpp -fpermissive

C Code

//cat.cpp
#include <windows.h>

typedef int (__cdecl *CatProc)(LPCTSTR say);
typedef int (__cdecl *BirdProc)(LPCTSTR say);

int main(void) {
	HINSTANCE petDll;
	CatProc catFunc;
	BirdProc birdFunc;
	BOOL freeRes;

	petDll = LoadLibrary("pet.dll");

	if (petDll != NULL) {
		catFunc = (CatProc) GetProcAddress(petDll, "Cat");
		birdFunc = (BirdProc) GetProcAddress(petDll, "Bird");
		if ((catFunc != NULL) && (birdFunc != NULL)) {
			(catFunc) ("meow-meow");
			(catFunc) ("mmmmeow");
			(birdFunc) ("tweet-tweet");
		}
		freeRes = FreeLibrary(petDll);
	}

	return 0;
}

Compile and Run

Compile

x86_64-w64-mingw32-g++ -O2 cat.cpp -o cat.exe \
-mconsole -I/usr/share/mingw-w64/include/ -s \
-ffunction-sections -fdata-sections -Wno-write-strings \
-fno-exceptions -fmerge-all-constants -static-libstdc++ \
-static-libgcc -fpermissive

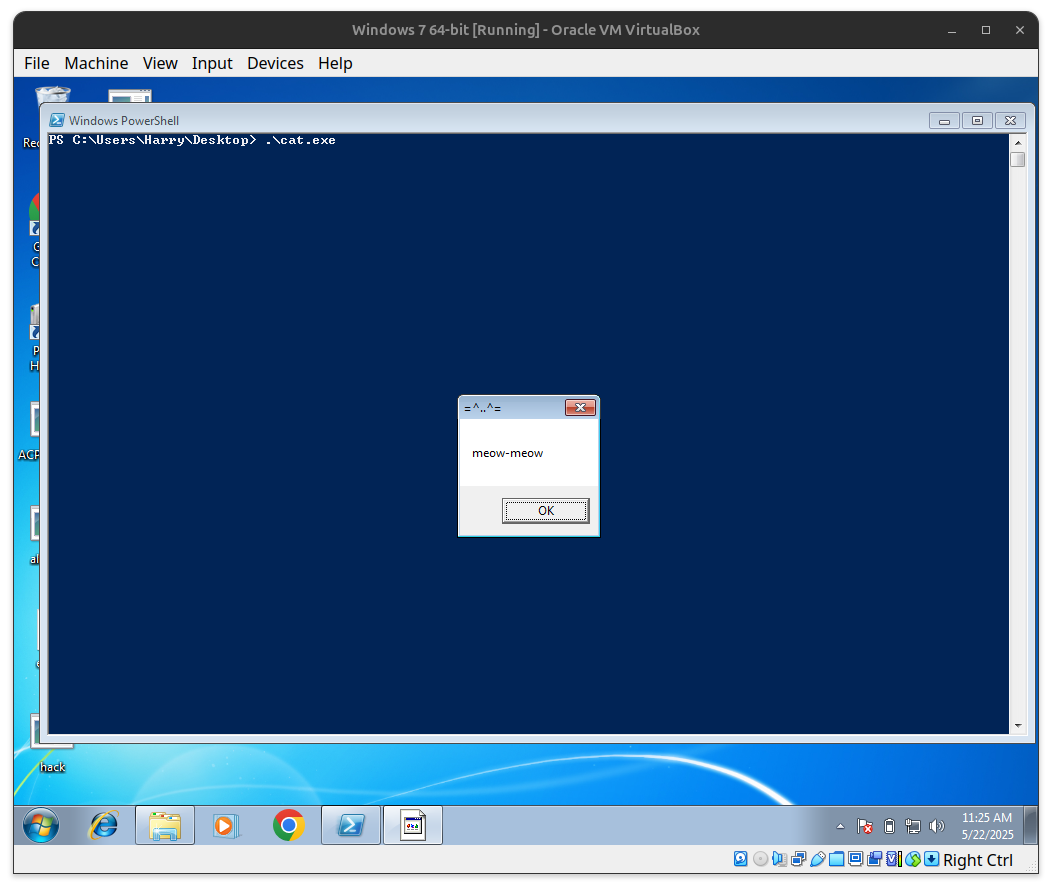

Run

.\cat.exe

Simple hooking

Program 1

Code

//hooking.cpp
#include <windows.h>
#include <stdio.h>

// Function pointer type
typedef int (__cdecl *CatProc)(LPCTSTR);

// Buffer for saving original bytes
char originalBytes[12];
FARPROC hookedAddress;

// Our hook function
int __stdcall myFunc(LPCTSTR say) {
    HINSTANCE petDll;
    CatProc catFunc;

    // Unhook the function
    DWORD oldProtect;
    VirtualProtect((LPVOID)hookedAddress, 12, PAGE_EXECUTE_READWRITE, &oldProtect);
    memcpy((LPVOID)hookedAddress, originalBytes, 12);
    VirtualProtect((LPVOID)hookedAddress, 12, oldProtect, &oldProtect);

    // Call the original function with modified text
    petDll = LoadLibrary("pet.dll");
    catFunc = (CatProc) GetProcAddress(petDll, "Cat");
    return (catFunc)("meow-squeak-tweet!!!");
}

// Hooking logic
void setMySuperHook() {
    HINSTANCE hLib;
    void* myFuncAddress;
    uintptr_t myFuncAddr;
    CHAR patch[12] = {0};
    DWORD oldProtect;

    // Load pet.dll and get the Cat function address
    hLib = LoadLibraryA("pet.dll");
    hookedAddress = GetProcAddress(hLib, "Cat");

    // Save original bytes
    VirtualProtect((LPVOID)hookedAddress, 12, PAGE_EXECUTE_READWRITE, &oldProtect);
    memcpy(originalBytes, (LPCVOID)hookedAddress, 12);

    myFuncAddress = (void*)&myFunc;
    myFuncAddr = (uintptr_t)myFuncAddress;

    // Build the patch: mov rax, myFuncAddr; jmp rax
    patch[0] = 0x48;     // REX.W
    patch[1] = 0xB8;     // MOV RAX, imm64
    memcpy(patch + 2, &myFuncAddr, 8);
    patch[10] = 0xFF;    // JMP RAX
    patch[11] = 0xE0;

    // Write the patch
    memcpy((LPVOID)hookedAddress, patch, 12);
    VirtualProtect((LPVOID)hookedAddress, 12, oldProtect, &oldProtect);
}

int main() {
    HINSTANCE petDll;
    CatProc catFunc;

    // Load pet.dll and call original Cat
    petDll = LoadLibrary("pet.dll");
    catFunc = (CatProc) GetProcAddress(petDll, "Cat");
    (catFunc)("meow-meow");

    // Install hook
    setMySuperHook();

    // Call Cat again, now it will trigger myFunc
    (catFunc)("meow-meow");

    return 0;
}

Explanation

#include <windows.h>
#include <stdio.h>

Includes the Windows API headers (windows.h) and standard I/O (stdio.h).

typedef int (__cdecl *CatProc)(LPCTSTR);

Defines a function pointer type named CatProc.
This means:

A function that returns int
Takes a single LPCTSTR (string literal or pointer to a constant string)
Uses the __cdecl calling convention (standard on Windows)

char originalBytes[12];
FARPROC hookedAddress;

originalBytes[12]: Buffer to save the original first 12 bytes of the target function (Cat) before we overwrite it (so we can restore them later).
hookedAddress: Stores the address of the target function (Cat in pet.dll).

int __stdcall myFunc(LPCTSTR say) {

Defines a new function myFunc that uses the __stdcall calling convention.
This will replace the original Cat function after hooking!

    HINSTANCE petDll;
    CatProc catFunc;

Variables for:

petDll: Handle to the loaded DLL (pet.dll)
catFunc: Function pointer to the real Cat function

    DWORD oldProtect;
    VirtualProtect((LPVOID)hookedAddress, 12, PAGE_EXECUTE_READWRITE, &oldProtect);
    memcpy((LPVOID)hookedAddress, originalBytes, 12);
    VirtualProtect((LPVOID)hookedAddress, 12, oldProtect, &oldProtect);

This block restores the original first 12 bytes (undoes the hook) to safely call the real Cat function.
VirtualProtect temporarily changes memory protection to allow write access to the target memory region.

    petDll = LoadLibrary("pet.dll");
    catFunc = (CatProc) GetProcAddress(petDll, "Cat");
    return (catFunc)("meow-squeak-tweet!!!");
}

Loads the real pet.dll
Retrieves the real Cat function’s address
Calls Cat with modified input "meow-squeak-tweet!!!" instead of what was originally passed to the hook
Returns the result of the real Cat function

Hooking logic: setMySuperHook()

void setMySuperHook() {

Function to install the hook!

    HINSTANCE hLib;
    void* myFuncAddress;
    uintptr_t myFuncAddr;
    CHAR patch[12] = {0};
    DWORD oldProtect;

Local variables:

hLib: handle to pet.dll
myFuncAddress: pointer to myFunc
myFuncAddr: the actual address of myFunc (converted to integer type)
patch: buffer to store the 12-byte trampoline (hook)
oldProtect: for restoring memory protection

    hLib = LoadLibraryA("pet.dll");
    hookedAddress = GetProcAddress(hLib, "Cat");

Loads the target DLL (pet.dll)
Finds the address of the Cat function to hook

    VirtualProtect((LPVOID)hookedAddress, 12, PAGE_EXECUTE_READWRITE, &oldProtect);
    memcpy(originalBytes, (LPCVOID)hookedAddress, 12);

Temporarily makes the first 12 bytes of Cat writable
Copies those bytes into originalBytes buffer so we can restore them later

    myFuncAddress = (void*)&myFunc;
    myFuncAddr = (uintptr_t)myFuncAddress;

Gets the actual address of our hook function myFunc and stores it as an integer

    patch[0] = 0x48;     // REX.W prefix: 64-bit instruction
    patch[1] = 0xB8;     // MOV RAX, imm64
    memcpy(patch + 2, &myFuncAddr, 8);
    patch[10] = 0xFF;    // JMP RAX
    patch[11] = 0xE0;

Builds a 12-byte trampoline for 64-bit hooking:

0x48 0xB8: MOV RAX, immediate 64-bit address
8 bytes: the address of myFunc
0xFF 0xE0: JMP RAX (jump to our myFunc)
This effectively redirects execution to myFunc when Cat is called!

    memcpy((LPVOID)hookedAddress, patch, 12);
    VirtualProtect((LPVOID)hookedAddress, 12, oldProtect, &oldProtect);
}

Writes the trampoline to the start of Cat
Restores the original memory protection

Main function

int main() {
    HINSTANCE petDll;
    CatProc catFunc;

Standard main() entry point
Load pet.dll and prepare to call Cat normally

    petDll = LoadLibrary("pet.dll");
    catFunc = (CatProc) GetProcAddress(petDll, "Cat");

Loads the DLL and finds the real Cat function

    (catFunc)("meow-meow");

Calls the original Cat function — it shows a message box "meow-meow".

    setMySuperHook();

Installs the hook — overwrites the Cat function’s first 12 bytes to redirect it to myFunc.

    (catFunc)("meow-meow");

Calls Cat again — but now it runs myFunc instead of the original Cat.
myFunc restores the original bytes, loads the real Cat again, and calls it with "meow-squeak-tweet!!!"

    return 0;
}

Program ends.

Compile and Run

Compile

x86_64-w64-mingw32-g++ hooking.cpp -o hooking.exe -static -luser32 -lkernel32

Move hooking.exe and pet.dll to Window 7(64-bit)\

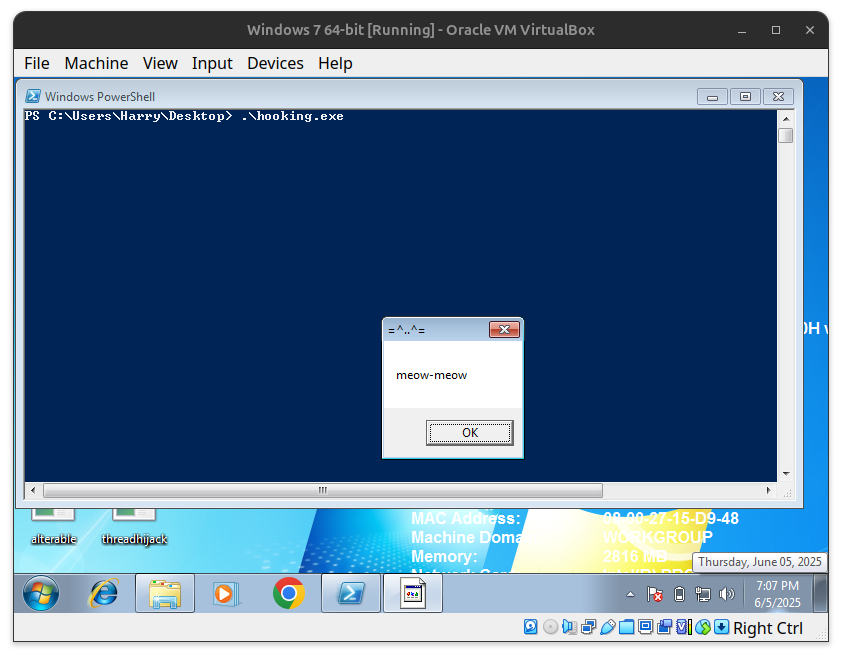

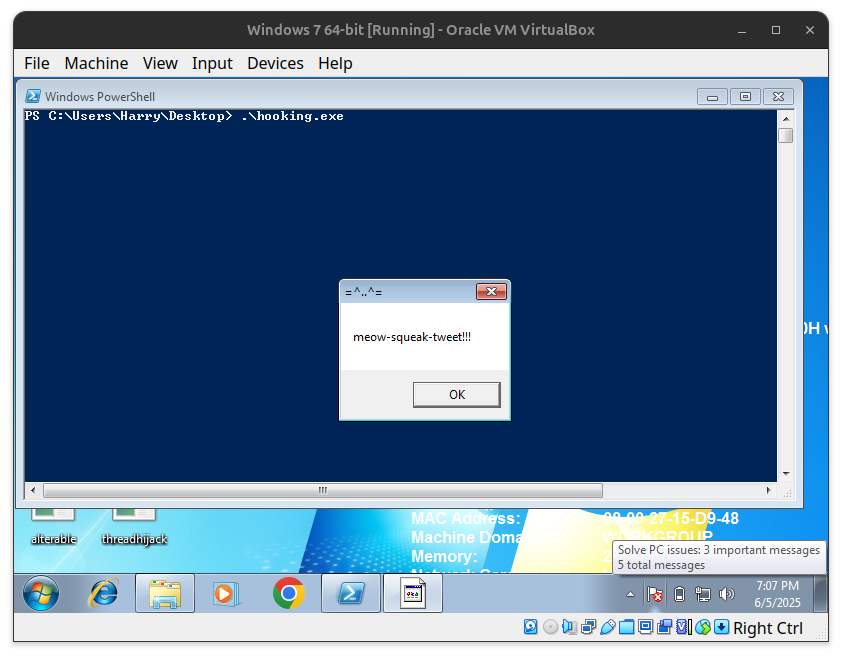

Run

Program 2

Code

//hooking2.cpp
#include <windows.h>
#include <stdio.h>

char originalBytes[12];
FARPROC hookedAddress;

// The replacement function
int __stdcall myFunc(LPCSTR lpCmdLine, UINT uCmdShow) {
    // Restore the original bytes
    DWORD oldProtect;
    VirtualProtect((LPVOID)hookedAddress, 12, PAGE_EXECUTE_READWRITE, &oldProtect);
    memcpy((LPVOID)hookedAddress, originalBytes, 12);
    VirtualProtect((LPVOID)hookedAddress, 12, oldProtect, &oldProtect);

    // Launch calculator instead
    return WinExec("calc.exe", uCmdShow);
}

// Hooking logic (64-bit safe)
void setMySuperHook() {
    HINSTANCE hLib;
    void* myFuncAddress;
    uintptr_t myFuncAddr;
    CHAR patch[12] = {0};
    DWORD oldProtect;

    // Get memory address of WinExec
    hLib = LoadLibraryA("kernel32.dll");
    hookedAddress = GetProcAddress(hLib, "WinExec");

    // Save the first 12 bytes
    VirtualProtect((LPVOID)hookedAddress, 12, PAGE_EXECUTE_READWRITE, &oldProtect);
    memcpy(originalBytes, (LPCVOID)hookedAddress, 12);

    myFuncAddress = (void*)&myFunc;
    myFuncAddr = (uintptr_t)myFuncAddress;

    // Build the patch: mov rax, myFuncAddr; jmp rax
    patch[0] = 0x48;     // REX.W
    patch[1] = 0xB8;     // MOV RAX, imm64
    memcpy(patch + 2, &myFuncAddr, 8);
    patch[10] = 0xFF;    // JMP RAX
    patch[11] = 0xE0;

    // Write the patch
    memcpy((LPVOID)hookedAddress, patch, 12);
    VirtualProtect((LPVOID)hookedAddress, 12, oldProtect, &oldProtect);
}

int main() {
    // Call original WinExec
    WinExec("notepad", SW_SHOWDEFAULT);

    // Install hook
    setMySuperHook();

    // Call again → this should trigger your hook
    WinExec("notepad", SW_SHOWDEFAULT);

    return 0;
}

Explanation

int __stdcall myFunc(LPCSTR lpCmdLine, UINT uCmdShow) {

This is the hook (replacement) function that replaces WinExec.

    return WinExec("calc.exe", uCmdShow);
}

Instead of running the original command, we force WinExec to launch "calc.exe" (Calculator).
After restoring the real WinExec, it’s safe to call it directly.

    // Get memory address of WinExec
    hLib = LoadLibraryA("kernel32.dll");
    hookedAddress = GetProcAddress(hLib, "WinExec");

Dynamically loads kernel32.dll and finds the address of WinExec.

Main Function

    // Call original WinExec
    WinExec("notepad", SW_SHOWDEFAULT);

Calls WinExec normally, launching Notepad.

    // Install hook
    setMySuperHook();

Installs the hook that redirects WinExec to myFunc.

    // Call again → this should trigger your hook
    WinExec("notepad", SW_SHOWDEFAULT);

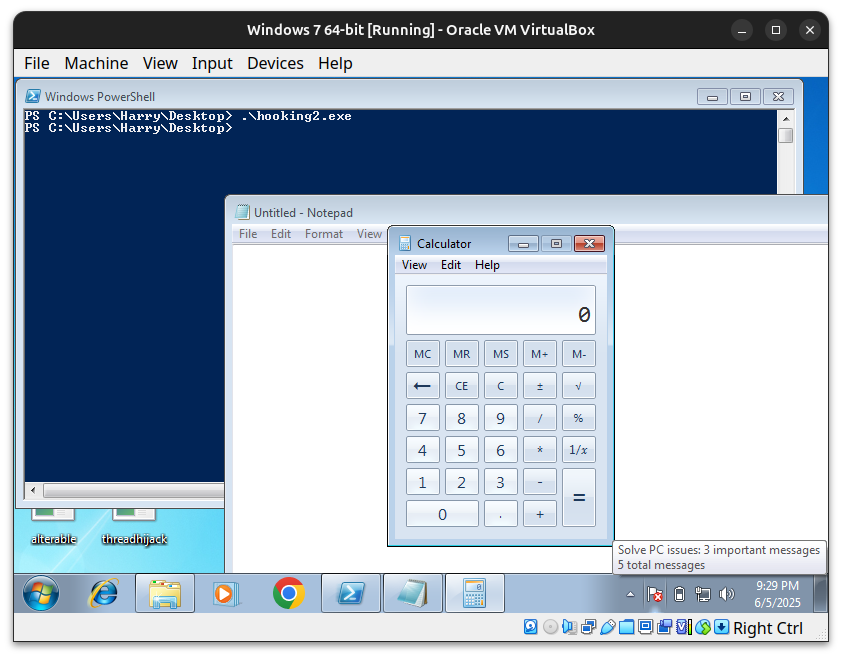

Calls WinExec again.
But this time, it jumps to myFunc (hooked).
myFunc launches Calculator instead of Notepad.

Compile and Run

Compile

x86_64-w64-mingw32-g++ hooking2.cpp -o hooking2.exe -static -luser32 -lkernel32

Move hooking2.cpp to Windows 7 (64-bit).

Explorer

API hooking

Table of Contents

Simple dll Code

Compile

C Code

Compile and Run

Simple hooking

Program 1

Code

Explanation

Compile and Run

Program 2

Code

Explanation

Compile and Run

Explorer

Graph View

Table of Contents

Recently Added

How I Built an AI News App in a Day with (Almost) No Code

via Thread hijacking

via Windows Fibers
