Nmap

4 min read

Introduction

What networking constructs are used to direct traffic to the right application on a server?

  • Ports

How many of these are available on any network-enabled computer?

  • 65535

How many of these are considered “well-known”?

  • 1024

Nmap Switches

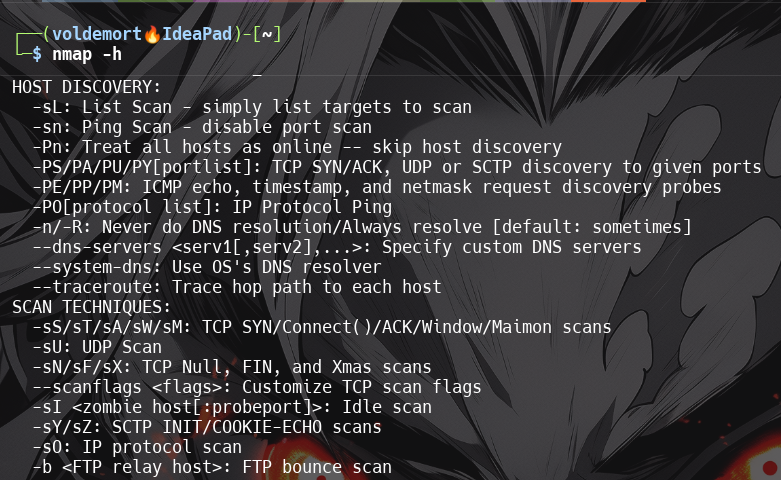

What is the first switch listed in the help menu for a ‘Syn Scan’ (more on this later!)?

  • -sS

Which switch would you use for a “UDP scan”?

  • -sU

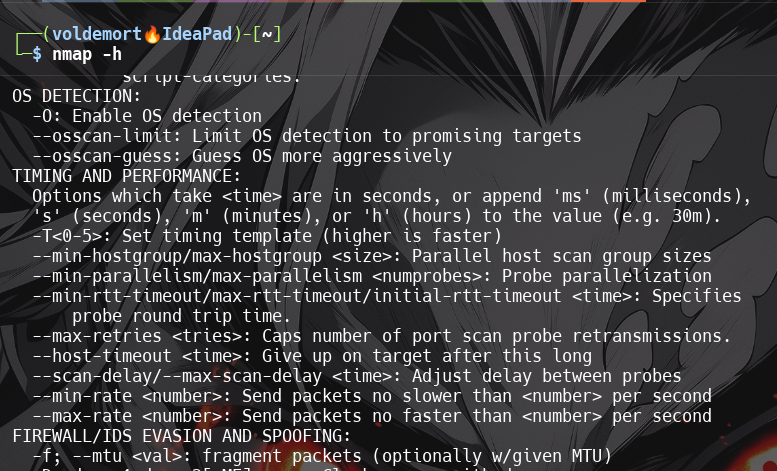

If you wanted to detect which operating system the target is running on, which switch would you use?

  • -O

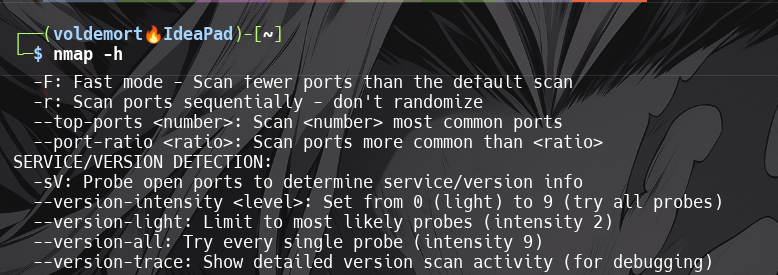

Nmap provides a switch to detect the version of the services running on the target. What is this switch?

  • -sV

The default output provided by nmap often does not provide enough information for a pentester. How would you increase the verbosity?

  • -v

Verbosity level one is good, but verbosity level two is better! How would you set the verbosity level to two?

  • -vv

What switch would you use to save the nmap results in three major formats?

  • -oA

What switch would you use to save the nmap results in a “normal” format?

  • -oN

A very useful output format: how would you save results in a “grepable” format?

  • -oG

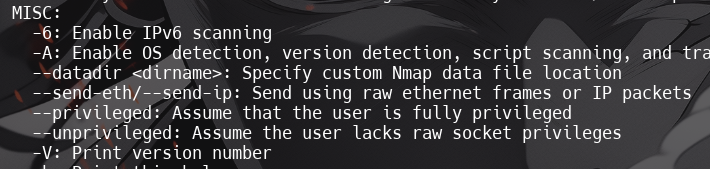

Sometimes the results we’re getting just aren’t enough. If we don’t care about how loud we are, we can enable “aggressive” mode. This is a shorthand switch that activates service detection, operating system detection, a traceroute and common script scanning.

How would you activate this setting?

  • -A

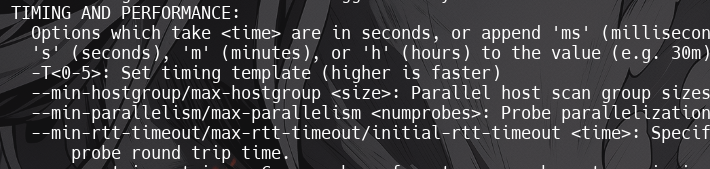

How would you set the timing template to level 5?

  • T5

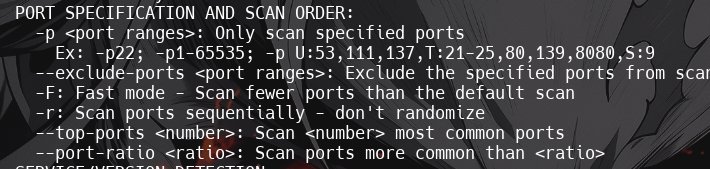

How would you tell nmap to only scan port 80?

  • -p 80

How would you tell nmap to scan ports 1000-1500?

  • -p 1000-1500

How would you tell nmap to scan all ports?

  • -p-

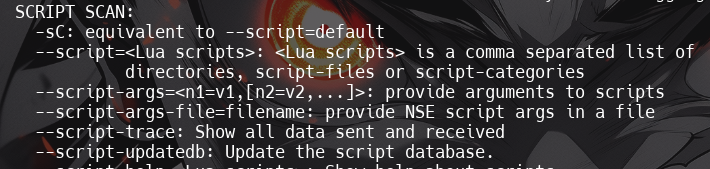

How would you activate a script from the nmap scripting library (lots more on this later!)?

  • --script

How would you activate all of the scripts in the “vuln” category?

  • --script=vuln

TCP Connection Scans

Which RFC defines the appropriate behaviour for the TCP protocol?

  • RFC 9293

If a port is closed, which flag should the server send back to indicate this?

  • RST

SYN Scans

There are two other names for a SYN scan, what are they?

  • Haalf-Open, Stralth

Can Nmap use a SYN scan without Sudo permissions (Y/N)?

  • N

UDP Scans

If a UDP port doesn’t respond to an Nmap scan, what will it be marked as?

  • open|filtered

When a UDP port is closed, by convention the target should send back a “port unreachable” message. Which protocol would it use to do so?

  • ICMP

NULL, FIN and Xmas

Which of the three shown scan types uses the URG flag?

  • xmas

Why are NULL, FIN and Xmas scans generally used?

  • Firewall Evasion

Which common OS may respond to a NULL, FIN or Xmas scan with a RST for every port?

  • Microsoft Windows

ICMP Network Scanning

How would you perform a ping sweep on the 172.16.x.x network (Netmask: 255.255.0.0) using Nmap? (CIDR notation)

  • nmap -sn 172.16.0.0/16

Task 10 : Overview

What language are NSE scripts written in?

  • Lua

Which category of scripts would be a very bad idea to run in a production environment?

  • intrusive

Working with the NSE

What optional argument can the ftp-anon.nse script take?

  • maxlist

Searching for Scripts

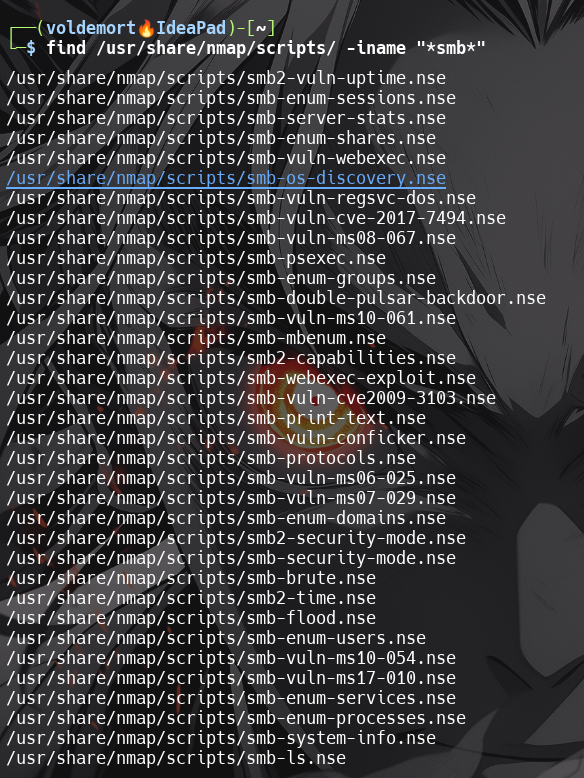

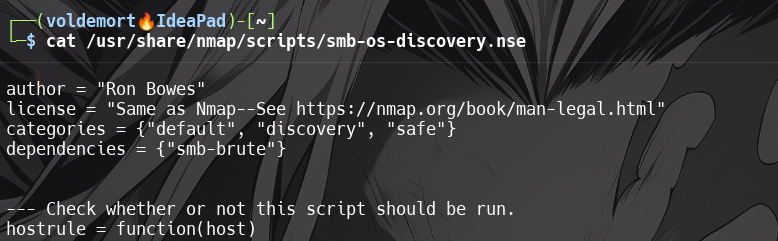

What is the filename of the script which determines the underlying OS of the SMB server?

  • smb-os-discovery.nse

Read through this script. What does it depend on?

  • smb-brute

Firewall Evasion

Which simple (and frequently relied upon) protocol is often blocked, requiring the use of the -Pn switch?

  • ICMP

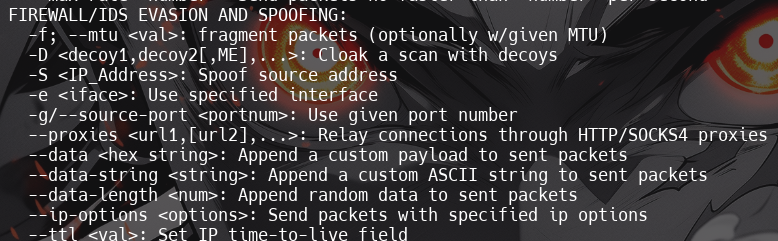

Which Nmap switch allows you to append an arbitrary length of random data to the end of packets?

  • --data-length

Practical

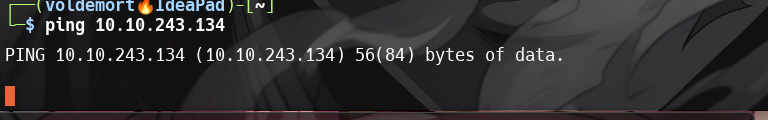

Does the target ip respond to ICMP echo (ping) requests (Y/N)?

  • N

Perform an Xmas scan on the first 999 ports of the target — how many ports are shown to be open or filtered?

  • 999
