Memory Size

			       1 Bit (b) = 1 Bit
			        1 Nibble = 4 Bits
			      1 Byte (B) = 8 Bits
			 1 Kilobyte (KB) = 1024 Bytes
			 1 Megabyte (MB) = 1024 Kilobytes
			 1 Gigabyte (GB) = 1024 Megabytes
			 1 Terabyte (TB) = 1024 Gigabytes
			 1 Petabyte (PB) = 1024 Terabytes
			  1 Exabyte (EB) = 1024 Petabytes
			1 Zettabyte (ZB) = 1024 Exabytes
			1 Yottabyte (YB) = 1024 Zettabytes

Memory Size Table

Unit	Size (Bytes)
Bit (b)	1 bit or 1/8 byte
Nibble	4 bits
Byte (B)	8 bits
Kilobyte (KB)	1024 bytes
Megabyte (MB)	1024 KB
Gigabyte (GB)	1024 MB
Terabyte (TB)	1024 GB
Petabyte (PB)	1024 TB
Exabyte (EB)	1024 PB
Zettabyte (ZB)	1024 EB
Yottabyte (YB)	1024 ZB

---

Addition of Bits

Example:
You’re adding:

  00110111   (which is 55 in decimal)
+ 00000001   (which is 1 in decimal)
------------
= 00111000   (which is 56 in decimal)

Let’s Add Bit by Bit (Right to Left):

Bit position:  7 6 5 4 3 2 1 0
               0 0 1 1 0 1 1 1   ← 00110111
           +   0 0 0 0 0 0 0 1   ← 00000001
           -------------------
               0 0 1 1 1 0 0 0   ← 00111000

Explanation of the rightmost bits:

• 1 + 1 = 10 → you write down 0, carry over 1
• 1 + 0 + carry 1 = 10 → write down 0, carry 1
• 1 + 0 + carry 1 = 10 → write down 0, carry 1
• 0 + 0 + carry 1 = 1 → write 1, carry 0
• Remaining bits add up normally.

---

Decimal to Binary Conversion

To convert a decimal number to binary:

1. Divide the number by 2.
2. Record the remainder.
3. Repeat the process with the quotient until you reach 0.
4. The binary representation is the remainders read in reverse order.

Example: Convert 13 to binary.

Division Step	Quotient	Remainder
13 / 2	6	1
6 / 2	3	0
3 / 2	1	1
1 / 2	0	1

Binary of 13: 1101

---

Binary to Decimal Conversion

To convert a binary number to decimal:

1. Multiply each bit by 2 raised to its position (from right, starting at 0).
2. Sum the results.

Example: Convert 1101 to decimal.

$$1\times 2^3+1\times 2^2+0\times 2^1+1\times 2^0$$ $$8+4+0+1=13$$

Decimal of 1101: 13

---

Decimal to Hexadecimal Conversion

💡 Hex Table (0–15):

Decimal	Hex
0	0
1	1
…	…
10	A
11	B
12	C
13	D
14	E
15	F

To convert a decimal to hexadecimal:

1. Divide the decimal number by 16 till Quotient < 16.
2. Convert Quotient and Reminders values to hex digits.
3. Put them together.

Example: Convert 65 to Hexadecimal.

Step 1:

• 65 ÷ 16 = 4 remainder 1

This gives:

• Quotient = 4
• Remainder = 1

Step 2:

• Quotient: 4 → hex digit is 4
• Remainder: 1 → hex digit is 1

Step 3:

• So, 65 in decimal = 0x41 in hex

Exercise:

1. Convert 10 to hexadecimal. → Answer

2. Convert 15 to hexadecimal. → Answer

3. Convert 31 to hexadecimal. → Answer

4. Convert 64 to hexadecimal. → Answer

5. Convert 127 to hexadecimal. → Answer

6. Convert 255 to hexadecimal. → Answer

7. Convert 1023 to hexadecimal. → Answer

8. Convert 4096 to hexadecimal. → Answer

9. Convert 12345 to hexadecimal. → Answer

10. Convert 65535 to hexadecimal. → Answer

---

Hexadecimal to Decimal Conversion

To convert a hexadecimal number to decimal, follow this simple method:

1. Write the hexadecimal number.
2. Replace each hex digit with its decimal equivalent.
3. Multiply each by 16 raised to its positional power.
4. Add all the products together.

Take each digit, multiply it by 16 raised to the power of its position (counting from right to left, starting at 0), and sum the results.

Example: Convert 2F to decimal

= (2 × 16¹) + (F × 16⁰)
= (2 × 16) + (15 × 1)
= 32 + 15
= 47

Example: Convert 3A7 to decimal

= (3 × 16²) + (A × 16¹) + (7 × 16⁰)
= (3 × 256) + (10 × 16) + (7 × 1)
= 768 + 160 + 7
= 935

Exercise:

1. Convert hexadecimal A to decimal.

2. Convert hexadecimal 1F to decimal.

3. Convert hexadecimal 3C to decimal.

4. Convert hexadecimal 7E to decimal.

5. Convert hexadecimal FF to decimal.

6. Convert hexadecimal 100 to decimal.

7. Convert hexadecimal 1A3 to decimal.

8. Convert hexadecimal 2F7 to decimal.

9. Convert hexadecimal 3E8 to decimal.

10. Convert hexadecimal FFFF to decimal.

---

Converting Unsigned Integer to Signed Integer

Not all integer values are positive. In some scenarios, negative integers are required. For Example, to represent the difference between two integers, you need to take into account that the difference could be negative, and only signed integers can hold negative values.
So to represent signed integer in native integer value which can interpret ate by CPU, there is a concept called two’s complement. Which helps in conversion between unsigned and signed values.

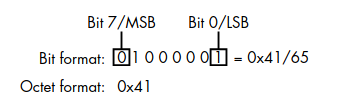

MSB → Most Significant Bit
LSB → Least Significant Bit

• Simple sign detection: MSB (Most Significant Bit) is the sign bit:
  • 0 = positive
  • 1 = negative

4-bit Example:

Positive Number (e.g., +5):

• Binary: 0101

Negative Number (e.g., -5):

1. Start with +5: 0101
2. Flip the bits: 1010
3. Add 1:
   1010 + 0001 = 1011

• So, -5 = 1011 in 4-bit two’s complement.

Binary	Decimal
0000	0
0001	1
0010	2
0011	3
0100	4
0101	5
0110	6
0111	7
1000	-8
1001	-7
1010	-6
1011	-5
1100	-4
1101	-3
1110	-2
1111	-1

• For n bits, two’s complement can represent integers in the range:
  $-2^{n-1}\text{ to }{2}^{n-1}-1$
  • For 8 bits: -128 to +127
  • For 4 bits: -8 to +7

8-bit Example:

Positive Number (e.g., +123):

• Binary: 01111011

Negative Number (e.g., -123):

1. Start with +123: 01111011
2. Flip the bits: 10000100
3. Add 1:
   10000100 + 00000001 = 10000101 refer to [[Memory Size#]]

• So, -123 = 10000101 in 8-bit two’s complement.

Let’s decode 10000101 as signed two’s complement:

Break down the bits:
1 0 0 0 0 1 0 1

Bit weights (signed):

• MSB = $-128$
• The rest: $64,32,16,8,4,2,1$

Now add the weights for the 1s:

• -128 (from the MSB)
• 4 and 1 from the last two bits

−128+4+1=−123-128 + 4 + 1 = -123

---

7-bit integer encoding

It is also known as Base-127 Varint encoding

Chunk Position	Continuation Bit (MSB)
First (LSB side)	1 if more follow
Last (MSB side)	Always 0

Value Range	Bytes Used	MSB of Each Byte
0 – 127	1 byte	0xxxxxxx (MSB = 0)
128 – 16383	2 bytes	First: 1xxxxxxx, Second: 0xxxxxxx
>16383	3+ bytes	All but last: 1xxxxxxx, Last: 0xxxxxxx

1. Convert 300 to binary.
2. Break into 7-bit chunks.
3. Add continuation bits

Example: Encoding integer 300

Step 1: Convert 300 to binary.

• 00000001 00101100 → 16-bit
• =0b100101100

Step 2: Break into 7-bit chunks.

• 00 0000010 0101100
• $1^{st}$ chunk = 0101100
• $2^{nd}$ chunk = 0000010

Step 3: Add continuation bits
Converting chunks to 8-bit and then adding 1 to MSB, to the chunk who follows more bytes and 0 to MSB, to the chunk who follows least bytes.

$1^{st}$ chunk = 0101100
= 00101100
$2^{nd}$ chunk = 0000010
= 00000010

Adding 1 to $1^{st}$ chunks MSB and 0 to $2^{nd}$ chunks MSB.

$1^{st}$ chunk = 00101100 + 1
= 10101100
= 0xAC → Hexadecimal
$2^{nd}$ chunk = 00000010 + 0
= 00000010
= 0x02 → Hexadecimal

Result:
Encoded as bytes:

[0xAC, 0x02]

Or in binary:

10101100 00000010
