PEview

2 min read

PEview is a lightweight, standalone application designed for examining the internal structure of Portable Executable (PE) files on Windows systems.

Downloading and Installing PEview

  • Download the application from the official website: PEview Download.
  • After downloading, extract the ZIP file to a directory of your choice.
  • Simply run PEview.exe to launch the program.

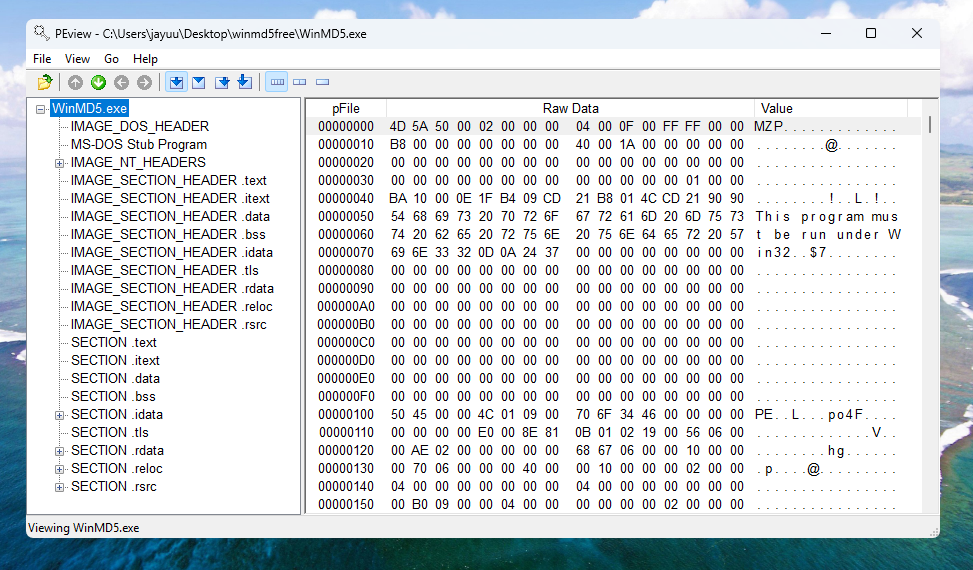

Navigating the PEview Interface

Upon launching PEview, you’ll be presented with a dual-pane interface:

  • Left Pane: Displays a hierarchical tree view of the PE file’s structure, including headers and sections.

  • Right Pane: Shows detailed information corresponding to the item selected in the left pane.

This intuitive layout allows users to easily navigate through different components of the PE file and inspect their properties.

Analyzing a File

To analyze a file:

  1. Open a File: Click on File in the menu bar and select Open, then choose the PE file you wish to examine.
  2. Explore the Structure: Use the left pane to navigate through various sections such as DOS Header, NT Headers, and Section Headers.
  3. View Details: Selecting an item in the left pane will display its detailed information in the right pane, including hexadecimal data and ASCII representations.

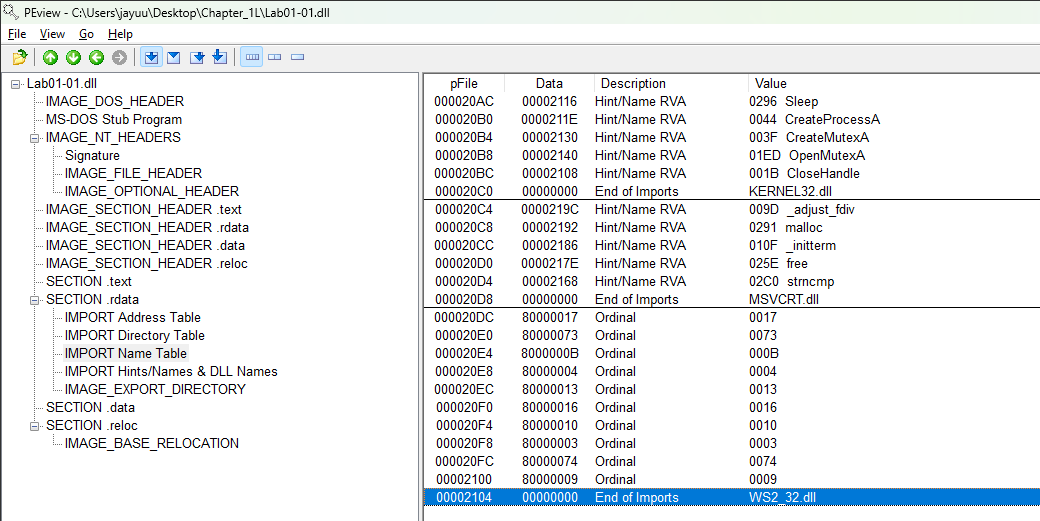

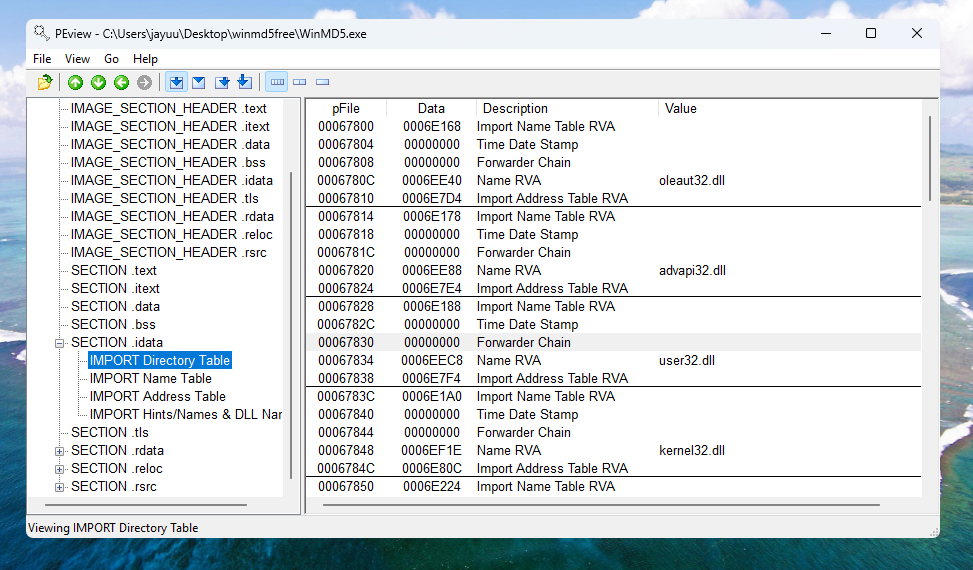

For example, examining the Import Table reveals functions that the executable imports from other libraries, which can provide insights into the program’s functionality.

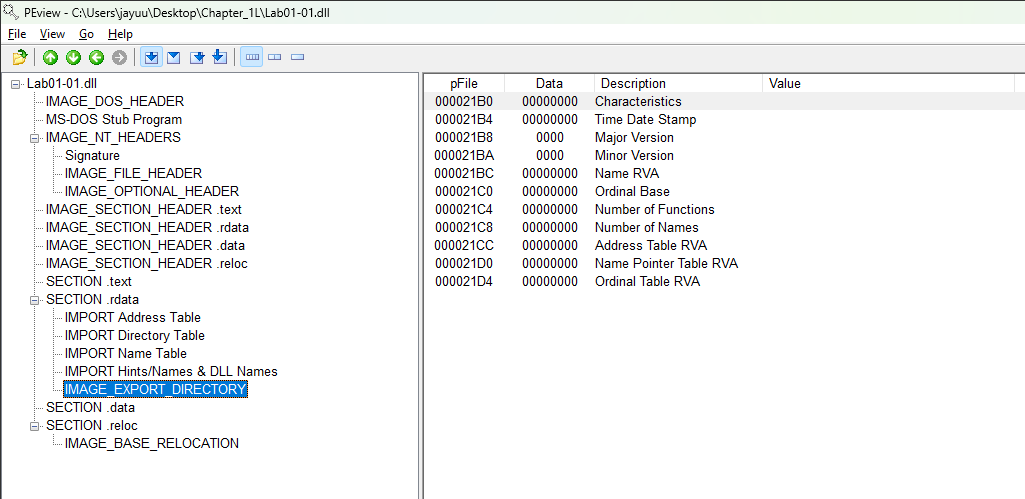

Export Table

Exported function with only an ordinal number


For a visual demonstration of PEview’s capabilities, consider watching the following video:
